GEK - HF Multi Band Endfed Antenna


     While inverted v dipoles are very efficient antennas, they are not the only way to go. Some houses don’t really lend themselves to installing a half-wave dipole. If you only have one support a GEK HF Multi Band Antenna may suit you better. This one does not require the Antenna Tuner to operate. It is resonant Half wave on 80m (3.5MHz) therefore also resonant on second, third and fourth harmonics etc. Due to high impedance feed point; the antenna is less height dependent. You can put it up at 30 or 50 feet in the air without much change in VSWR values.


Various installations such as horizontal, vertical, as inverted V, as inverted L, zigzag etc. are possible.

Each and every orientation have different radiation pattern and different takeoff angel

Non metallic pole should be used in vertical position


Measured VSWRs values could vary with way and height of installation.

Maximum height you put will get maximum results

No counterpoise Required (Grounding recommended)


NOTE: Grounding does not affect antenna tuning. If the transformer box is installed high above the ground, there is no need to route the ground wire from the box, instead just ground the coaxial cable at the entrance to your home or at the station.


Two Models available

1) Hanging type and
2) With aluminum plate , SS Bracket and SS clamps for pipe fittings.



International WSPR project in India VU2OB Qth Delhi with 200mW Digital mode Using GEK 5 Band HF Antenna.




MARK-II









700W  4 BAND Hanging Type



100W  4 BAND Hanging Type


ONLY BALUN


49:1, 56:1, 64:1, 75:1, & 81:1  available













TYPE II With Aluminum Plate, SS Clamps and SS Brackets For Pipe Fittings








                           Type -I  Hanging Type






2 Band Antenna MK-II


 2 Band Versions (20M&10M)

 (Total Length 32 Feet (10Meters)

 (Hanging Type only)



1) GEK EFHW- 2010A (2 Band) (100w)
 20 &10m (14-30MHz)
 (DIGITAL-42W, CW-75W & SSB-120 Watts)
 Total Length 32 Feet (10Meters)

2) GEK EFHW- 2010B (2 Band) (200w)
 20 &10m (14-30MHz)
 (DIGITAL-60W, CW-120W & SSB-210 Watts)
 Total Length 32 Feet (10Meters)


3) GEK EFHW- 2010C (2 Band) (350w)
20 &10m (14-30MHz)
(DIGITAL-85W, CW-212W & SSB-350 Watts)
Total Length 32 Feet (10Meters)

4) GEK EFHW- 2010D (2 Band) (700w)
 20 &10m (14-30MHz)
(DIGITAL-170W, CW-425W & SSB-680 Watts)
Total Length 32 Feet (10Meters)

5) GEK EFHW- 2010E (2 Band) (1200w)
20 &10m (14-30MHz)
(DIGITAL-300W, CW-750W & SSB-1200 Watts)
Total Length 32 Feet (10Meters)


NOTE: No antenna tuner required.

 > 50 Ohms antenna port

> No tuner required for prime Band, No tuning required

> No counterpoise needed (Grounding recommended)

> 100% UV resistant Poly carbonate IP67 weather proof Enclosure

> SO-239 Connector, Stainless steel fittings



NOTE: Grounding does not affect antenna VSWR. If the transformer box is installed high above the ground, there is no need to route the ground wire from the box, instead just ground the coaxial cable at the entrance to your home or at the station.



Various installations such as horizontal, vertical, inverted V, inverted L, zigzag etc. are possible, Non metallic pole should be used in vertical position.



Only hanging type model available.



Shipment charge Extra



vu3gek@gmail.com

WhatsApp / Telegram : +91-9363105352


--------------------------------------------------------------------------------------------------------------------------------------------------------------

  --------------------------------------------------------------------------------------------------------------------------------------------------------------

4 Band Versions (40M/20M/15M &10M)
(Total Length 66 Feet (20Meters)
 (Both Hanging & Plate Pipe fittings available)


1) GEK EFHW- 4010A (4Band) (100w)
40/20/15m&10m (7-30MHz)
(DIGITAL-30W, CW-75W & SSB-120 Watts)

Total Length 66 Feet (20Meters)

2) GEK EFHW- 4010B (4Band) (200w)
40/20/15m&10m (7-30MHz)
(DIGITAL-60W, CW-120W & SSB-210 Watts)
Total Length 66 Feet (20Meters)

3) GEK EFHW- 4010C (4Band) (350w)
40/20/15m &10m (7-30MHz)
(DIGITAL-85W, CW-212W & SSB-350 Watts)
Total Length 66 Feet (20Meters)

4) GEK EFHW- 4010D (4Band) (700w)
40/20/15m &10m (7-30MHz)
(DIGITAL-170W, CW-425W & SSB-680 Watts)
Total Length 66 Feet (20Meters)

5) GEK EFHW- 4010E (4Band) (1200w)
40/20/15m &10m (7-30MHz)
(DIGITAL-300W, CW-750W & SSB-1200 Watts)
Total Length 66 Feet (20Meters)

NOTE: No antenna tuner required for all 4 bands.

For Aluminum Plate & SS Bracket clamps Fittings add Rs500/-


> 50 Ohms antenna port
> No tuner required, No tuning required
> No counterpoise needed (Grounding recommended)
> 100% UV resistant Poly carbonate IP67 weather proof Enclosure
> SO-239 Connector, Stainless steel fittings

NOTE: Grounding does not affect antenna VSWR. If the transformer box is installed high above the ground, there is no need to route the ground wire from the box, instead just ground the coaxial cable at the entrance to your home or at the station.

Various installations such as horizontal, vertical, inverted V, inverted L, zigzag etc. are possible, Non metallic pole should be used in vertical position.

(Both Hanging & Plate Pipe fittings available)

Shipment charge Extra
vu3gek@gmail.com
WhatsApp / Telegram : +91-9363105352


 -------------------------------------------------------------------------------------------------------------------------------------------------------------

5 Band Versions (80M/40M/20M/15M&10M)

(80M Compromised)
(Total Length 75 Feet (23Meters)
(Both Hanging & Plate Pipe fittings available)

1) GEK EFHW- 8010A (5Band) (100w)
 80/40/20/15&10m (3.5 - 30MHz)
(DIGITAL-30W, CW-75W & SSB-120 Watts)
 Total Length 75 Feet (23Meters)

2) GEK EFHW- 8010B (5Band) (200w)
 80/40/20/15&10m (3.5 - 30MHz)
(DIGITAL-60W, CW-120W & SSB-210 Watts)
 Total Length 75 Feet (23Meters)

3) GEK EFHW- 8010C (5Band) (350w)
 80/40/20/15&10m (3.5 - 30MHz)
(DIGITAL-85W, CW-212W & SSB-350 Watts)
Total Length 75 Feet (23Meters)

4) GEK EFHW- 8010D (5Band) (1000w)
  80/40/20/15&10m (3.5 - 30MHz)
(DIGITAL-120W, CW-550W & SSB-1000 Watts)
Total Length 75 Feet (23Meters)

5) GEK EFHW-8010E (5Band) (2000w)
80/40/20/15&10m(3.5 - 30MHz)
(DIGITAL-540W, CW-1550W & SSB-2000 Watts)
Total Length 75 Feet (23Meters)

NOTE: Only 80M Bandwidth will be sharper, ALL other Bands No antenna tuner required.


For Aluminum Plate & SS Bracket clamps Fittings add Rs500/-


> 50 Ohms antenna port
> No tuner required for prime bands, No tuning required
> No counterpoise needed (Grounding recommended)
> 100% UV resistant Poly carbonate IP67 weather proof Enclosure
> SO-239 Connector, Stainless steel fittings

NOTE: Grounding does not affect antenna VSWR. If the transformer box is installed high above the ground, there is no need to route the ground wire from the box, instead just ground the coaxial cable at the entrance to your home or at the station.

Various installations such as horizontal, vertical, inverted V, inverted L, zigzag etc. are possible, Non metallic pole should be used in vertical position.

(Both Hanging & Plate Pipe fittings available)

Shipment charge Extra
vu3gek@gmail.com
WhatsApp / Telegram : +91-9363105352

 ------------------------------------------------------------------------------------------------------------------------------------------------------------

8 Band Versions

(80M/40M/(30M)/20M/17M/15M/12M & 10M)

(Total Length 131 Feet (40Meters)
 (Both Hanging & Plate Pipe fittings available)


1) GEK EFHW- 8010A/8 (8Band) (100w)
  80,40,(30),20,17,15,12&10M (3.5 - 30MHz -
(DIGITAL-30W, CW-75W & SSB-120 Watts)

 Total Length 131Feet (40Meters)

2) GEK EFHW- 8010B/8 (8Band) (200w)
  80,40,(30),20,17,15,12&10M (3.5 - 30MHz
  (DIGITAL-60W, CW-120W & SSB-210 Watts)
 Total Length 131Feet (40Meters)

3) GEK EFHW- 8010C/8 (8Band) (350w)
 80,40,(30),20,17,15,12&10M (3.5 - 30MHz)
(DIGITAL-85W, CW-212W & SSB-350 Watts)
 Total Length 131Feet (40Meters)

4) GEK EFHW- 8010D/8 (8Band) (1000w)
 80,40,(30),20,17,15,12&10M (3.5 - 30MHz
(DIGITAL-250W, CW-500W & SSB-1000 Watts)
Total Length 131Feet (40Meters)

5) GEK EFHW-8010E/8 (8Band) (2000w)
 80,40,(30),20,17,15,12&10M (3.5 - 30MHz)
(DIGITAL-350W, CW-1000W & SSB-2000 Watts)
 Total Length 131Feet (40Meters)

 NOTE: No antenna tuner required for all 8 bands.

For Aluminum Plate & SS Bracket clamps Fittings add Rs500/-


> 50 Ohms antenna port
> No tuner required, No tuning required
> No counterpoise needed (Grounding recommended)
> 100% UV resistant Poly carbonate IP67 weather proof Enclosure
> SO-239 Connector, Stainless steel fittings

NOTE: Grounding does not affect antenna VSWR. If the transformer box is installed high above the ground, there is no need to route the ground wire from the box, instead just ground the coaxial cable at the entrance to your home or at the station.

Various installations such as horizontal, vertical, inverted V, inverted L, zigzag etc. are possible, Non metallic pole should be used in vertical position.

(Both Hanging & Plate Pipe fittings available)

Shipment charge Extra
vu3gek@gmail.com
WhatsApp / Telegram : +91-9363105352

-------------------------------------------------------------------------------------------------------------------------------------------------------------

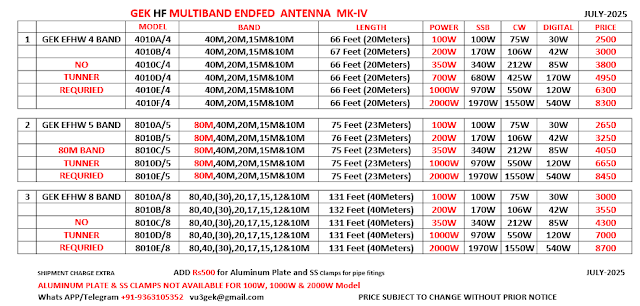

PRICE LIST FOR ALL MODELS





ONLY BALUN


49:1, 56:1, 64:1, 75:1, & 81:1













BANDWIDTH & SWR:


80M : 100 KHz & SWR : < 1:2,0 > 1:1,8

40M : 200 KHz & SWR : < 1:1,5 > 1:1,8

20M : 350KHz & SWR : < 1:1.5 > 1:1,9

15M : 450KHz & SWR : < 1:1,8 > 1:2,9

10M : 1MHz & SWR : < 1:1,8 > 1:2,9



Various installations such as horizontal, vertical, inverted V, inverted L, zigzag etc. are possible.Two Models available, hanging type and with aluminum plate, Bracket clamps for pipe fittings.












Each and every orientation have different radiation pattern and different takeoff angel

the antenna wire should not comes to closer with any metal object, wall or tree nearby


Specifications, Design and price Subject to change without Prior notice
Shipment cost extra

As there are many models all antenna products are produced on order.By an ever increasing demand, order processing for the antenna is up to 15 working days from paid order.



Email:  vu3gek@gmail.com
Whatsapp/Telegram: +91-9363105352





-------------------------------------------------------------------------------------------------------------------------------------

GEK Beautiful Baluns

























  • 500KHz - 55MHz
  • 1:1 Current Balun
  • 1000/3000 Watts
  • SWR less than 1.5
  • Toroid Ferrite Core
  • 95mm x 95mm Poly carbonate weather proof German made Housing
  • SS I Bolts ,nuts & screw
  • SO-239

1) 1:1 400W Both sides Connector Type Rs1300/-
2) 1:1 1000W Regular Type Rs1950/-
3) 1:1 1000W Both sides Connector Type Rs2000/-
4) 1:1 2000W Regular Type Rs2900/-
5) 1:1 2000W Both sides Connector Type Rs2950/-
6) 1:1 3000W Regular Type Rs4450/-
7) 1:1 3000W Both sides Connector Type Rs4500/-
8) 4:1 1000W Regular Type Rs1900/-
9) 9:1 1000W Regular Type Rs1900/-



 Shipment cost extra
Design and specification subject to change without prior notice



Radiation Pattern Without Balun



Radiation Pattern With Balun




-------------------------------------------------------------------------------------------------------------------------------------


1000Watts GEK-2 Inverted-V Antenna with Balun






Type inverted V two band antenna

  • Band 1- 40m
  • Band 2- 20m
  • 1:1 Current Ballun 1000watts
  • SWR less than 1.5
  • 2.5 sq mm copper wire
  • SS I Bolts ,nuts & screw
  • SO-239
Rs3300/-

Needs tuning after installation

Shipment cost extra
Design and specification subject to change without prior notice



Email:  vu3gek@gmail.com
Whatsapp/Telegram: +91-9363105352
